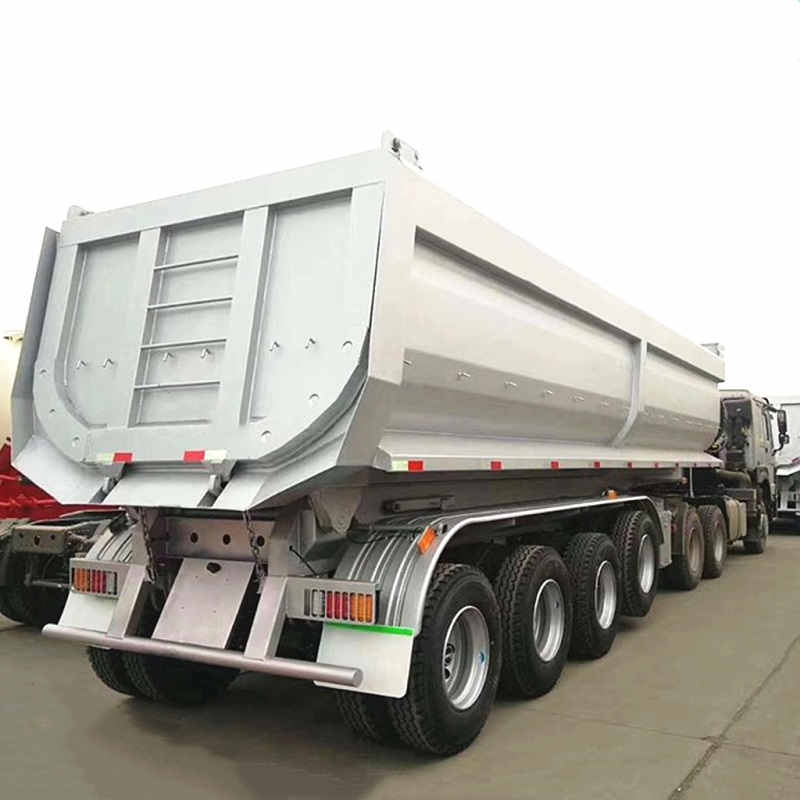

U Type Semi Trailer Tipper

U Type Semi Trailer Tipper Product description:

The Hydraulic U Type Semi Trailer Tipper for sale could bear the bad road conditions. We reinforce the sides with high tensile strengthenilowboy truck trailertrucks and trailers ltdng rip and the channel steel reinforced enclosure shape decomponents of a trailerautotransporter trailersign.

The sides are welding molding trucking truckstanker fuelwhich increasing the loading capacitylow flat bed trailerflatbed trailer parts. The Hydraulic U Type Semi Trailer Tipper could be used for nearly 10 years. Tongya Hydraulic trailer fabricatorslogo trailersU Type Semi Trailer Tipper for sale has different load capacities: 24 cubics, 30 cubics, 35 cubics, 45aluminum trailer manufacturers near mebuy heavy duty truck cubics, We can customize the semi trailer tipper according to your special need.

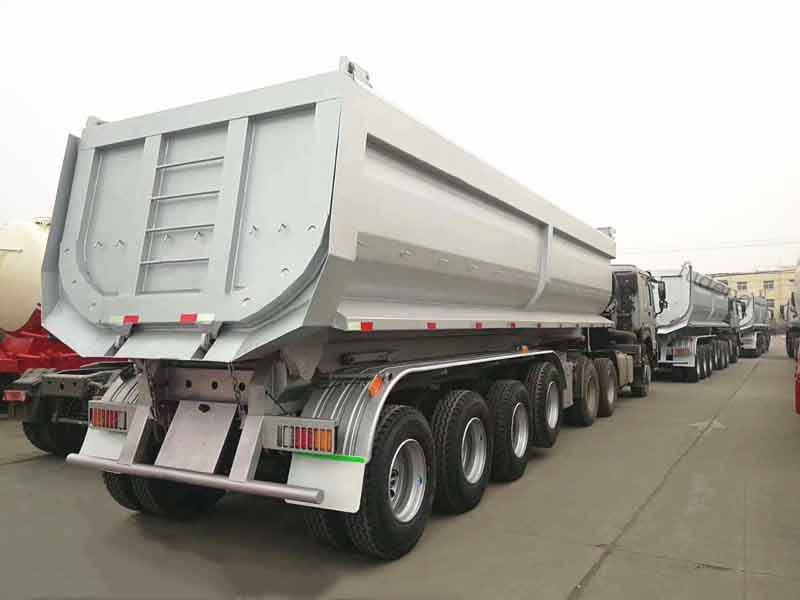

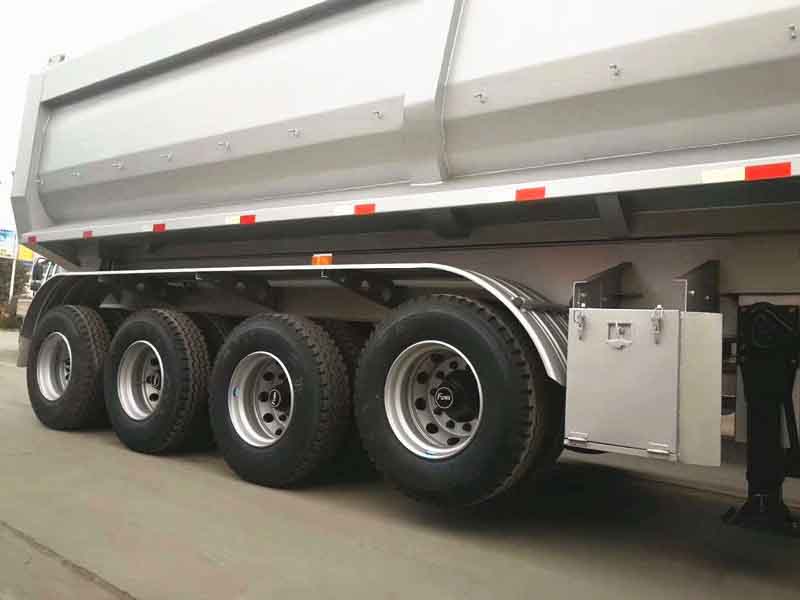

U Type Semi Trailer Tipper for Sale in Philippines

Semi trailer tipper Specifications:

Dimension: 9300mmx2500mm x3700mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 40m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / Tongya Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5itruck on truckcommercial trailer sales near mench(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Toolbox: 1 set

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, paflatbed semi trailer weight capacitycontainer semickaging and customer feedback, etc.
