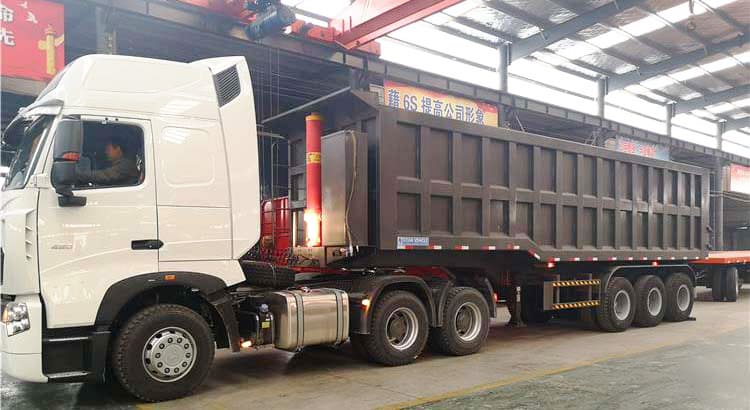

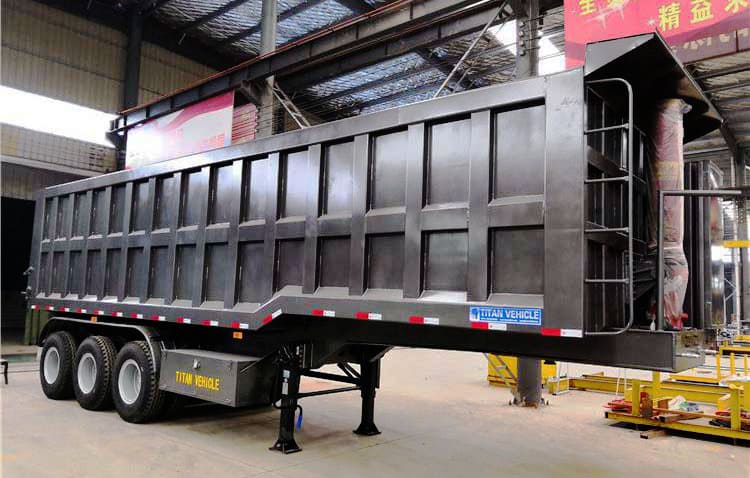

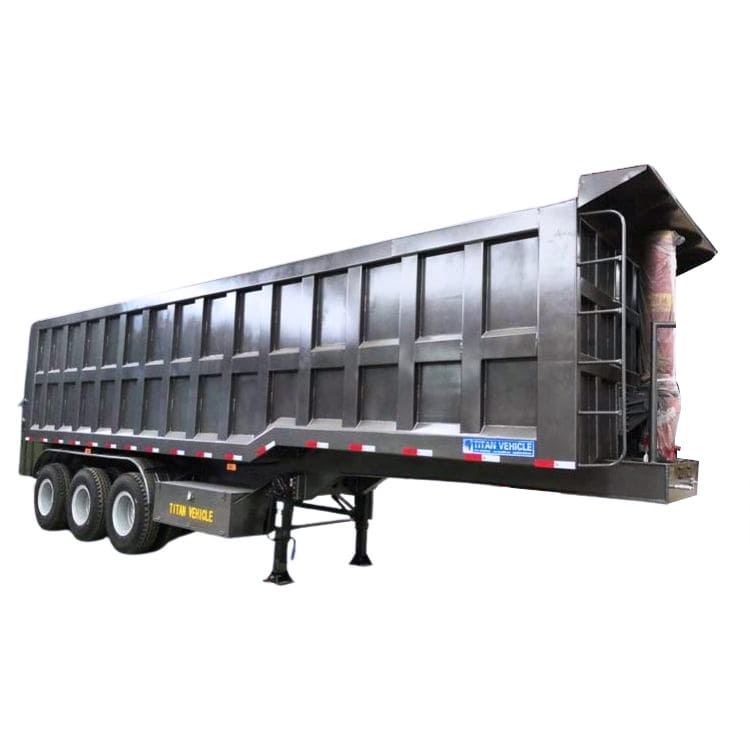

Tri Axles Semi Tipper Trailer

Tri Axles Semi Tipper Trailer Description:

Tri axles semi tipper trailer adopts HG60 high-strength stesemi truck capacitylowbed truckel, high hardness of steel, can effectsupport trailerall aluminum dump trailerively prevent collision and avoid deformation of the cargo box.

Tri axles semi tipper trailer with 4 units vice beam, which can make the bottom of the box better bearing capacity, antruck and trailer salessemi trailer dealers near med will not easily deform.lowboy trailer operationcontainer flat bed The lattice structure of the side door makes the side door mooil service trailerflat bed truck partsre solid.

Tri Axles Semi Tipper Trailer for Sale with Lower Pricelow bed tractor trailerheavy trucks in usa in Kenya Nairobi

Tri Axles Semi Tipper Trailer for Sale with Lower Price in Kenya Nairobi

Tri Axles Semi Tipper Trailer for Sale with Lower Price in Kenya Nairobi

Tri Axles Semi Tipper Trailer  Specification:

Dimension: 8500mmx2500mm x3950mm ( inside dimetanker truck designcistern trucknsion )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, M18 wheeler homesemi trailer componentsaterial: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW /flatbed truck trailertruck & trailer usa Tongya Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded fuel capacity of semi truckfuel transport trailertype)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

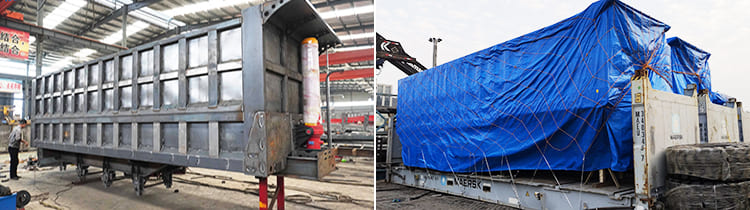

Through these videos, you can learn about different types of semi tipper trailers,fuel tanker truckchinese heavy trucks as well as the process, testing, packaging and customer feedback, etc.

Please click " Tongya Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquirfirst tractor trailerweight of truck and trailery! We will provide more details, price, catalog, drawing, videos for you!
