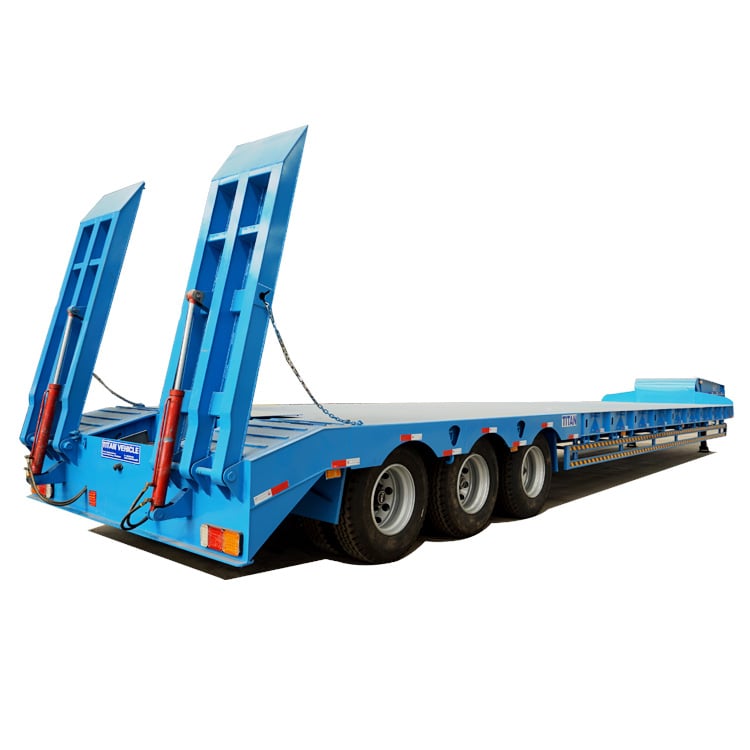

Tri Axles 80T Low Bed Semi Trailer

Tri Axles 80T Low Bed Semi Trailer Description:

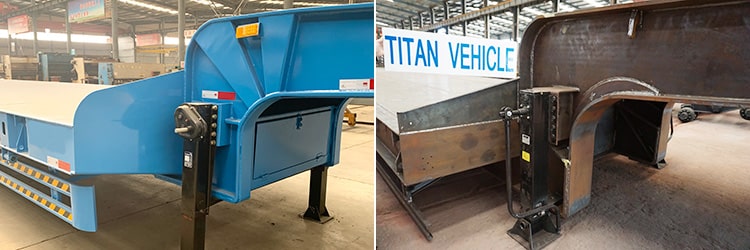

The side beam of tri axles 80t low bed semi trailer adopts "H" shape design and is welded with HG 60 steel and it is designefuel tank with trailerloading trailerd H shape with a height of 300mm,factory trailertrucks fuel width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and it will not deform after fuel delivery trucksemi trailer coversten years of use. Anti - turbulence ability incbuy lowboy trailerflatbed truck typesreased about 3 times

Tri Axles 80T Low Bed Semi Trailer for Sale Near Me in Tanzania

Tri Axles 80T Low Bed Semi Trailer for Sale Near Me in Tanzania

Tri Axles 80T Low Bed Semi Trailer for Sale Near Me in Tanzania

Tri Axles 80T Low Bed Semi Trailer for Sale Near Me in Tanzania

Tri Axles 80T Low Bed Semi Trailer Specification：

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / Tongya Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted ora semi trailersemi truck moving welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material:dump trailers forflatbed trailer manufacturers Q345B steel.

Bottom Platform: 5mm thick checkeredflatbed trailer weight limittruck trailer inside plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Tri Axles 80T Low Bed Semi Trailer Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.semi truck fuel tanktrailer categories

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, different semi trailer typescommercial truck and trailer partswill not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

Tri Axles 80T Low bed Semi trailer details display video

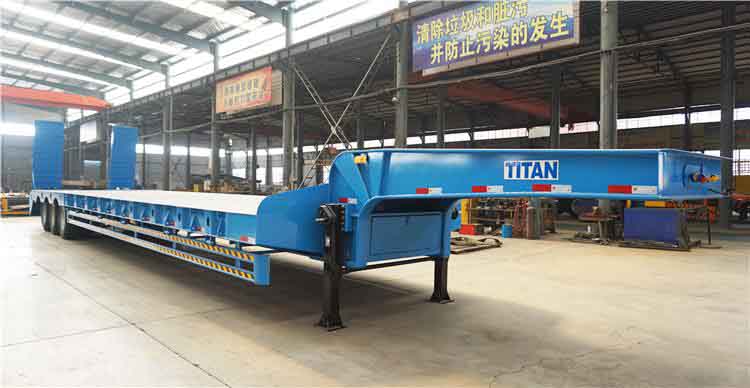

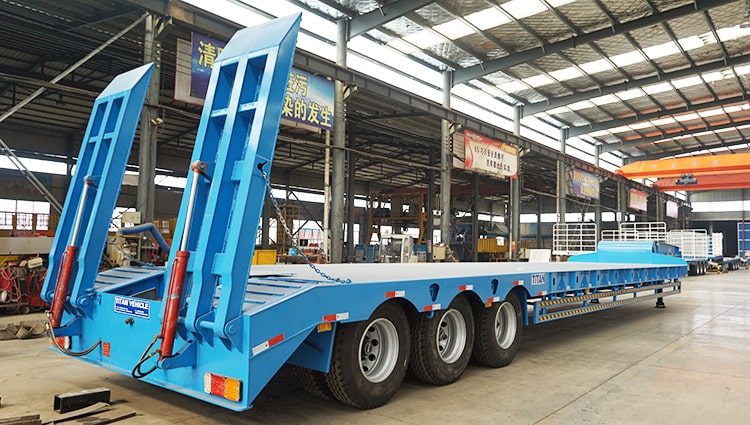

Lowbed trailer in production

Please click "Tongya Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos ffuel tank semi trailertruck trailer service near meor you!
