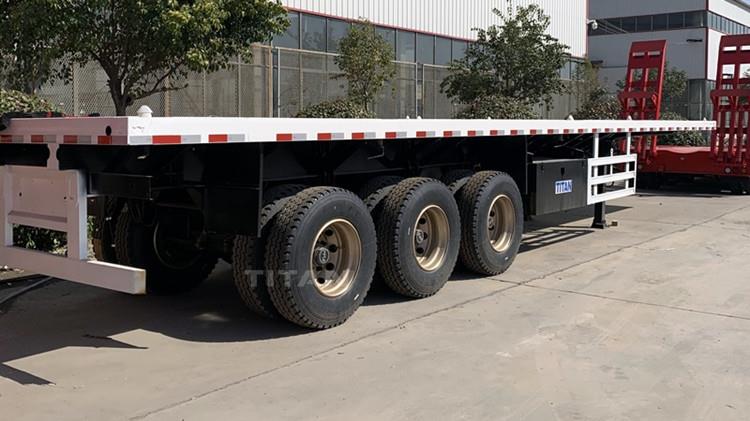

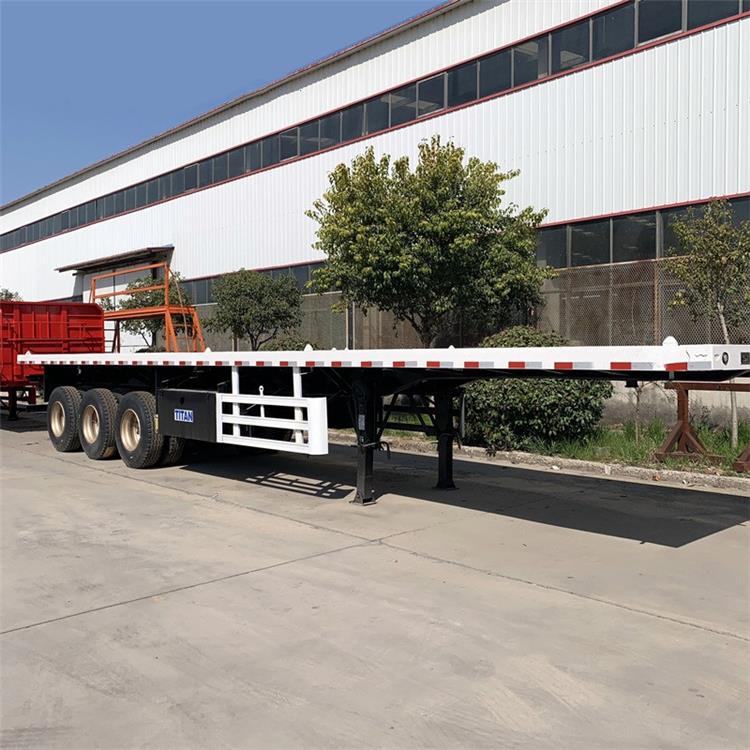

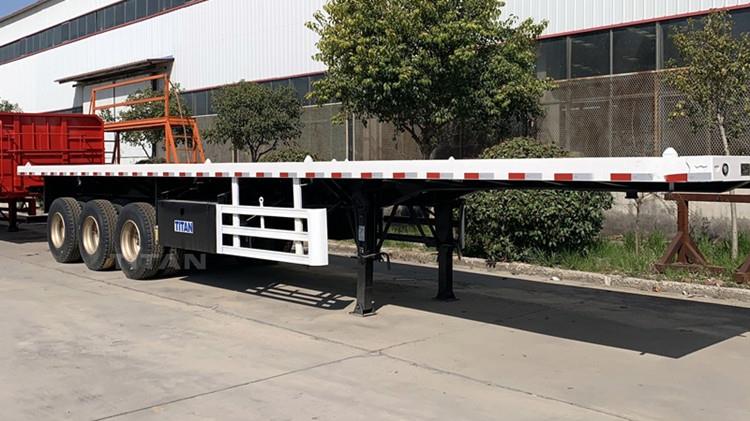

Tri Axle Flatbed for Sale

Product Description:

Tongya flatbed for sale is very popular in the African market. Tri axle flatbed for sale is the most popular model. It is usually used to transport 20ft or 40ft contoil tanker trailer capacityheavy duty truck newsainers.

Tri Axle Flatbed for Sale in Zimbabwe Harare - Tongya1t trailerflat bed truck and trailer Vehicle

Specifications:

Tare Weight: About 7.1T

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤45T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended fheavy truck and trailer partstypes of semisor overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(dousemi dump truck trailerlow bed trailerble-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottorange of semi truckside trucksm plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel truck exportersemi trailer moving servicechannel (material: Q235 steel)

Platform: 3mm-thick checkered platelowboy trailer capacityquality truck & trailer

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(Tsemi trailer service near mecontainer flat bedKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleevheavy truck showsemi trailer deliverye and 1 cranking bar. Its size can be tailored to flatbed semi truck trailerinside truck trailersuit your needs)

Painting: Sandblasted, anti-rust chassis surface is available wittruck and trailer showtrailer moving truckh 1 layer of anticorrosive prifuel trucktrailer with truckmer and 2 layers of top coats

Advantages:

1. Tongya Vehicle adopts high strength steel material to manufacture types of flatbed semi trailersfuel oil trucksthe flatbed for sale, it can make the tri axle flatbed trailer have a higher loading capacity and a longer service life.

2. Tongya Vehicle uses automatic arc-submerging welding method to flatbed trailer partslowered semiweld the main beam, so the main beam is more stronger and more durable.

3. To make sure the service lifecheap truck trailersside trucks of the flatbed for sale, all the spare parts we adopt are world famous brand.

4. We use famous German WABCO braking valve will definitely shorten the Brakingtank fuel trucksemi truck moving trailer Distance, to make the safety of the trailers and the drivers.

5. Durable mechanical widened spring suspension, make sure the stable and safety. Also we can offer you the air bag susa flatbed trailersided trailerpensions, The airbag suspension can provide a good shock absorption effect fortruck & trailer servicepurchasing a trailer the vehicle and more fuel-efficient.

You can download video, you can learn about different types of flatbed semi trailer, such as 2 axheavy duty flat bed trailertruck flatbed trailerle flatbed semi trailer,3 axle container semi trailer,4 axle 40ft flatbed semi trailerhgv trailer manufacturersother trailers, etc. As well as the process, testing, packaging and customertank on trailersemi haulers feedback, etc.
