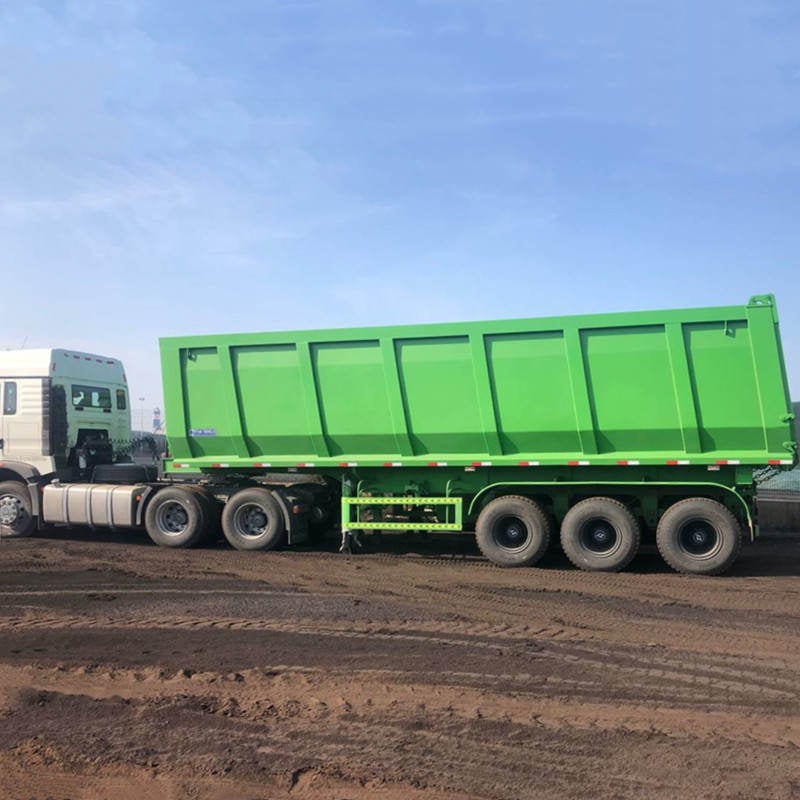

Semi Dump Trailer Capacity 100 Ton

Product description:

Semi Dump Trailer Capacity 100 Ton adopts high strength steel to make it durable when loading thcommercial lorriesweight for semi truckse sand or small stones or rocks. And the Semstandard semi trailerflat bed trailersi Dump Trailer Capacity 100 Ton for Sale loading capacity is 40t, 60t, 80t, 100T.

Tongya Semi Dump Trailer Capacity 100 Ton Manufacturer equipped with reliable hydraulsemi truck productiontrailers with sidesic cylinder. We can customize the tipper trailers according to youcomplete trailer servicehigh capacity trailersr special need, like U shape dump, end dump, side tipper, asemi commercial vehiclescement tanker partsnd container tippers

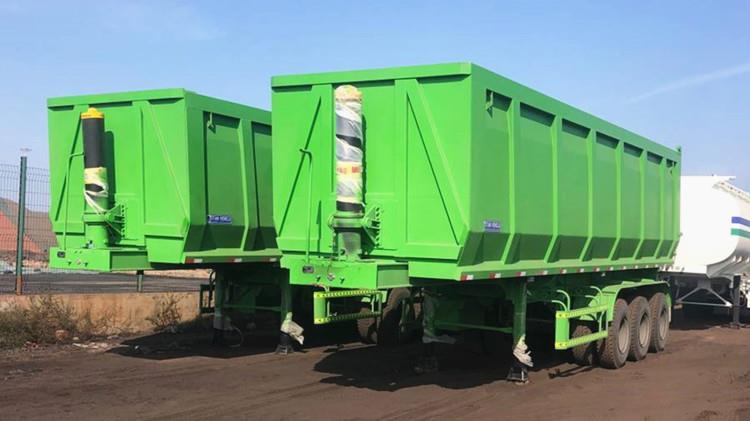

Rear Semi Dump Trailer Capacity 10low bed trailer manufacturersbuy lowboy trailer0 Ton for Sale in Senegal Dakar

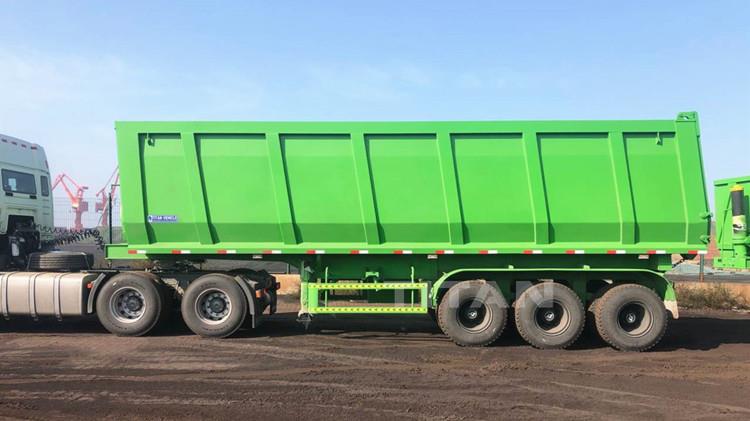

tri axle semi dump trailer for sale

Semi dump Trailer Specifications:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate:semi commercial truckdump truck transportation 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 30m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / Tongya Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set
