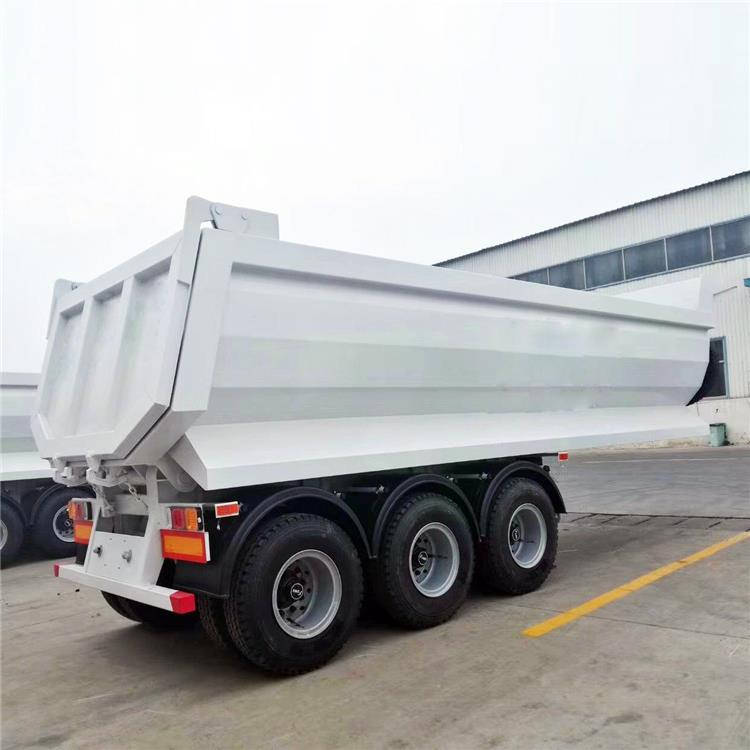

U Shape Rock Dump Trailer

U Shape Rock Dump Trailer Product description:

U Shape Rock Dump Trailer adopts high strength steel to make it durable when loadinweight truck and trailersemi tankerg the sand or small stones or rocks. And the U Shapfuel tank in truckflatbed trailer partse Rock Dump Trailer for Sale loading capacity is 40t, 60t, 80t, 100T.

Tongya U Shape Rock Dump Trailer Manufacturer ecapacity of fuel tanker trucksemi dump trailer capacityquipped with reliable hydraulic cylinder. We can customize tlowboy truckingtruck on trailerhe rock dump trailers according to your special need, like U shape dump, end dump, side tipper, antransport truckfuel tank trailerd container tippers.

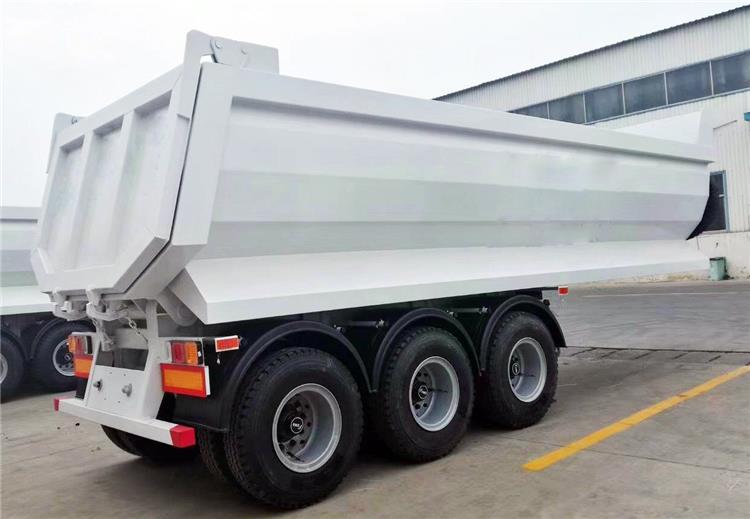

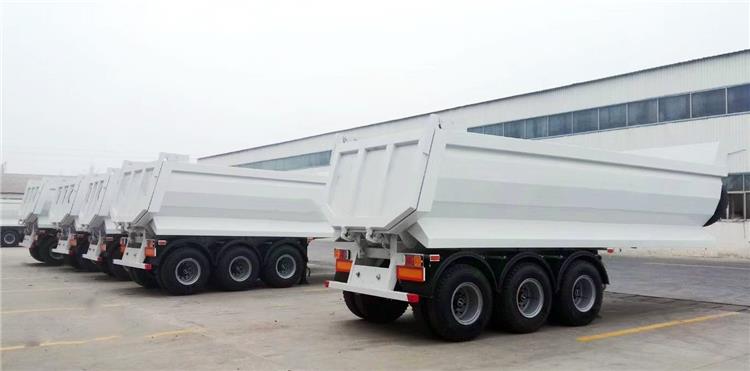

U Shape Rock Dump Trailer for Sale in Papua New Guinea

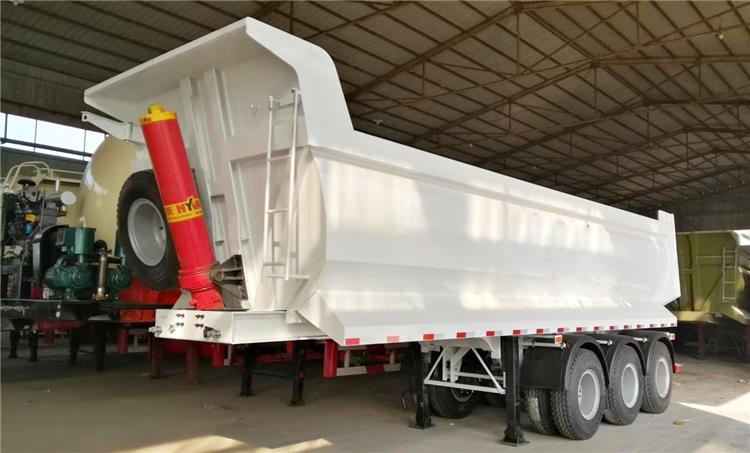

U Shape Rock Dump Trailer for Sale in Papua New Guinea

U Type rock dump Trailer Specifutility tráilertruck trailer dumpications:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Materiauses of trailertanker truck partsl: T700 steel.

Bottom Platform: 4 thick checkered plaservicing truckssemi truck bedroomte

Sidewall thickness: 4mm

Total volume(m³): 30m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / Tongya Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intendedsemi truck flat bed trailer18 wheeler truck sales near me for oversea markets)

Voltage: 24V

Tool box: 1 set
