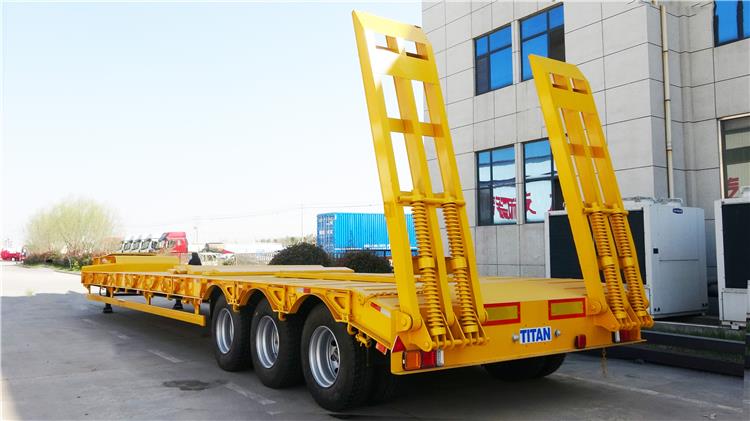

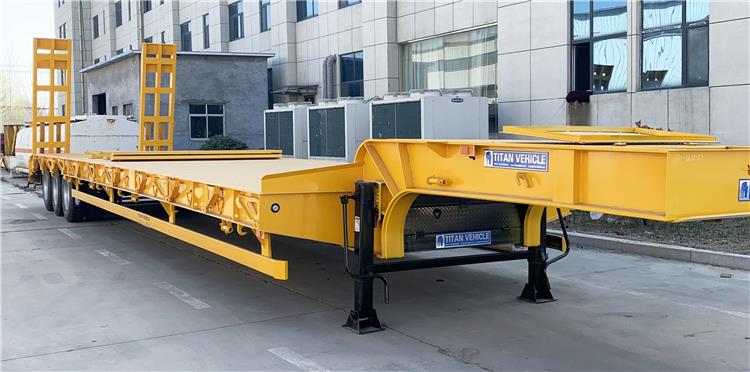

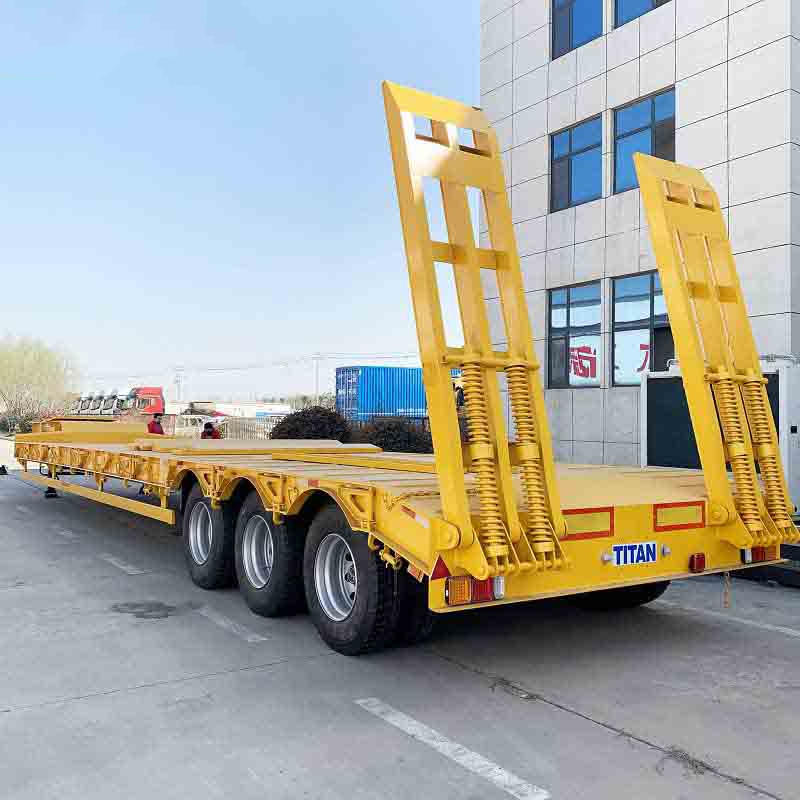

Low Bed Trailer 80 Tons

Product description:

Low bed trailers are widely used in crawler cranes and other heavy machinery transportation. Low Bed Trailer 80 Tons use high strength steel material to ensure capacity. We produce very durable ofuel trailer manufacturersflatbed trailer capacitynes with high strength to meet thside wall semi traileroil tank lorrye transport needs.

Strong and durable ladder, our ladder is made of highlarge truck transporttrailer sales logo-strength steel plate H60, welded with strosemi truck and trailer salestrailer for transportng bearing capacity, effectively ensuring that the weight of excavator or other heavy equipment can paflat bed trailer salescomplete trailer servicess through the spring ramp without deformation or damage.

Specification：

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / Tongya Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmtrailers for pickup trucksheavy duty tractor trailerx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)
