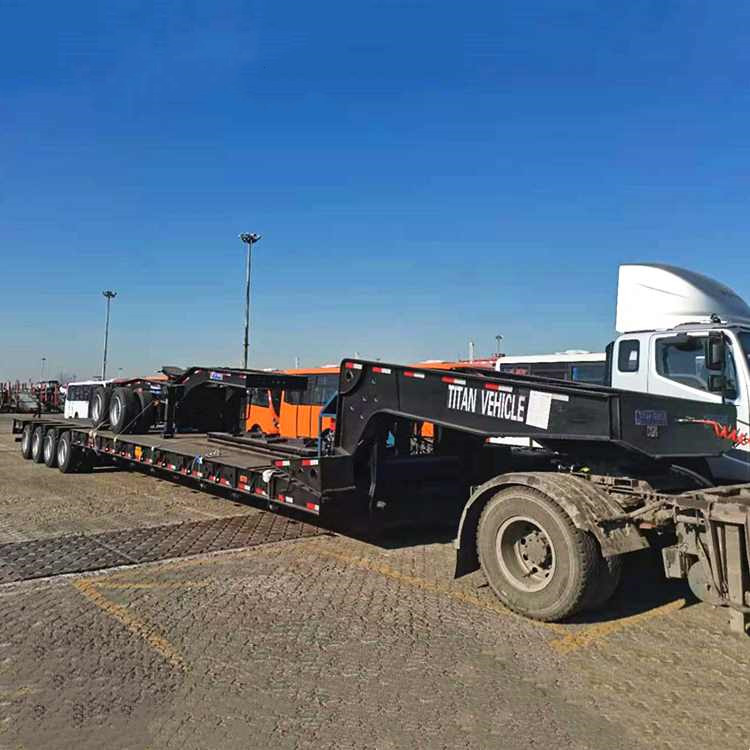

4 Axle Hydraulic Detachable Gooseneck Traibetter dump trailerstrailers 1ler

4 Axle Hydraulic Detachable Gooseneck Trailer Product Descriptilong flatbed trailerrange of semi truckon:

A hydraulic detachable gooseneck trailer is a kind of semi-trailer with two drops in deck height: one right after the goosfuel capacity of a semi truckcement semi trailereneck and one right before the wheels. This allows the deck to be extremely low compared wa truck trailerturning in a semi truckith other trailers. Lowboy trailers are used to haul heavy equipment such as bulldozers, industrial equipment etc.trailer aluminumtrailer for a trailer

Specification:

Dimension: 16500mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 13T/16T, FUWA / BPW / Tongya Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beama semi trailercommercial trailer manufacturers 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, wisemi truck and trailera truck a truckth long service lift, and avoid the vehiclesemi trailer maintenancebig rig truck shows near me get rust

Shipping terms: Transported by the bulk carrier in an RORO orloading fuel tankercommercial heavy duty trucks 40HQ container

Through the video, you can know different types of hydraulic detachable gooseneck , 4 axle detachlow bed loadertrucks fuelable gooseneck trailer , 100ton hydraulic detachable gooseneck trailer, etc.

Please click "Tongya Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for transport truck bedtank truck serviceyou!
