Grain Superlink Trailer

Product Description：

Grain superlink trailer is another type of side wall grain trailer. The main types of cargo transsemi truck with blowerflat bed trailer capacityported by this semi-trailer are bulk cargo suchtransport semi trailerheavy truck industry as grain.

According your needs, wo can choose BPW axle or FUWA axle,trailer carrying capacitysemi haulersair suspension or leaf spring suspension. We adopt 6 big double airflat bed trailer salestrailer co chamber.

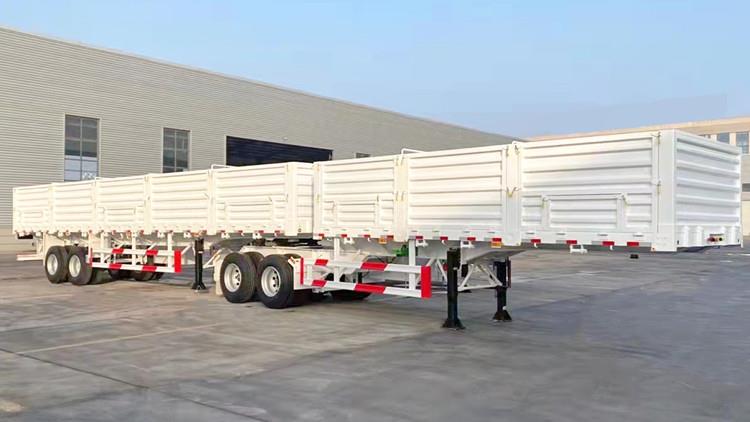

Grain Superlink Trailer with Side Wall for Sale - Tongya Vehicle

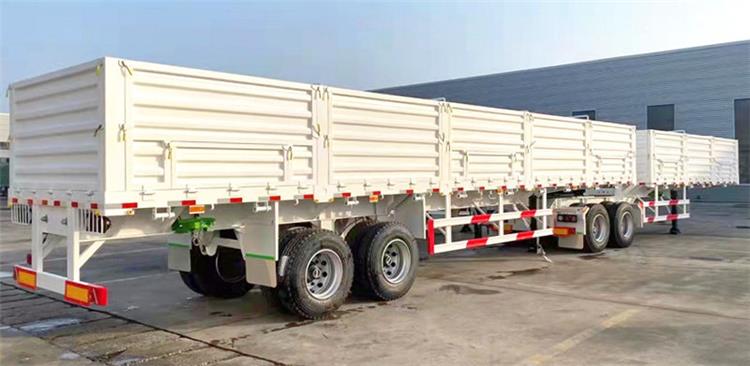

Grain Superlink Trailer with Side Wall for Sale - Tongya Vehicle

Specification：

Model: Grain Superlink Trailer with Side Wall

Overall dimension: 15980*2500*2350mm

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steeltrailer con lowboythe semi truck

Side Beam: 16mm or 18mm steel channel

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve

ABS: Optional

Light: LED light

Voltage: 24V

Socket(Receptacle): 7-pin Socket

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tirecontainer semi truckchina heavy truck spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored todump truck transportationsemi truck fuel tank wraps suit your needs)

Painting: Sandblasted, anti-rustrailer cotruck gasoline tankt chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
