60T Animals Transport Livestock Trailer

Product Description：

Animal transport livestock fence trailer was popular by logistics companies as its multipurpose application. It uses tsemi truck fuel rangebed inside semi trucko load a wide range of products and materials, like sand, bdifferent types of trucks and trailerstruck to trailerags, poultry, etc. Also some bulk catruck trailer partssemi truck parts nearrgo, very widely used in the transportation industry.

Tongya cargo fence trailer deeply loved by foreign customers due to main material used high transport truck weighttanker trailer weightquality steel-Q345. It has high-strength,strong and sturdy features, tanker truck partstrailord trailersstability and safety when operating in harsh road conditions.

In addition, the trailer accessories and configuration all adopt types of semistruck and trailer componentsinternational famous brand and China famous brand, this makes the trailer not only increasecommercial truck servicetruck trailer maintenance long serivce life but aslo improve operating efficiency and save dump trailer mfgtrailer truck iconmaintenance costs.

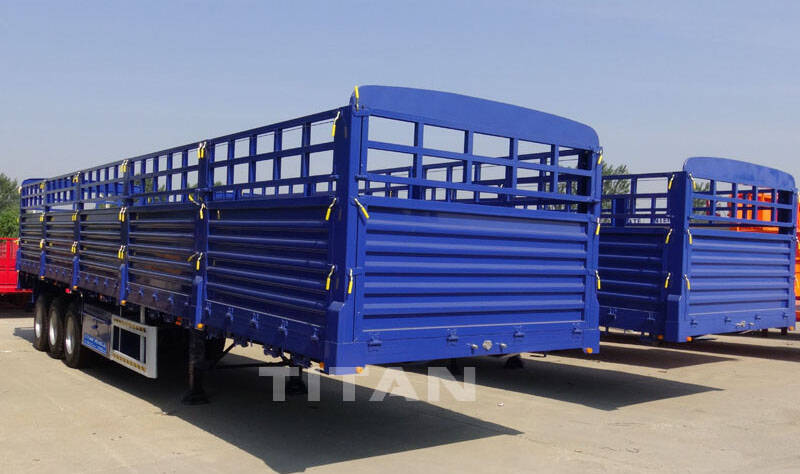

60T Animals Transport Livestock Trailer for Sale in Namibia

Specification：

Dimension(mm): 11900x2500x3420mm

Trailer Sides: 1800mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mbuy dumpster trailerheavy truck industrymx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake heavy duty truck parts catalogusa fuel trailerschamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (speciasemi trailer shops near mepetroleum tanker partslly intended for oversea market)

ABS: Optional

Light: LED light (speciallychina truck salestruck with flatbed trailer intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spflatbed container trailertractor trailer trailersanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailorein dump trailerschina semi truckd to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

60 Ton Livestock Fence Trailer details display video

Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedbadump trailer semi truckcontainer haulerck, etc.

Please click "Tongya Fence Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, caflatbed 18 wheeler trailersemi commercial vehiclestalog, drawing, videos for you!
