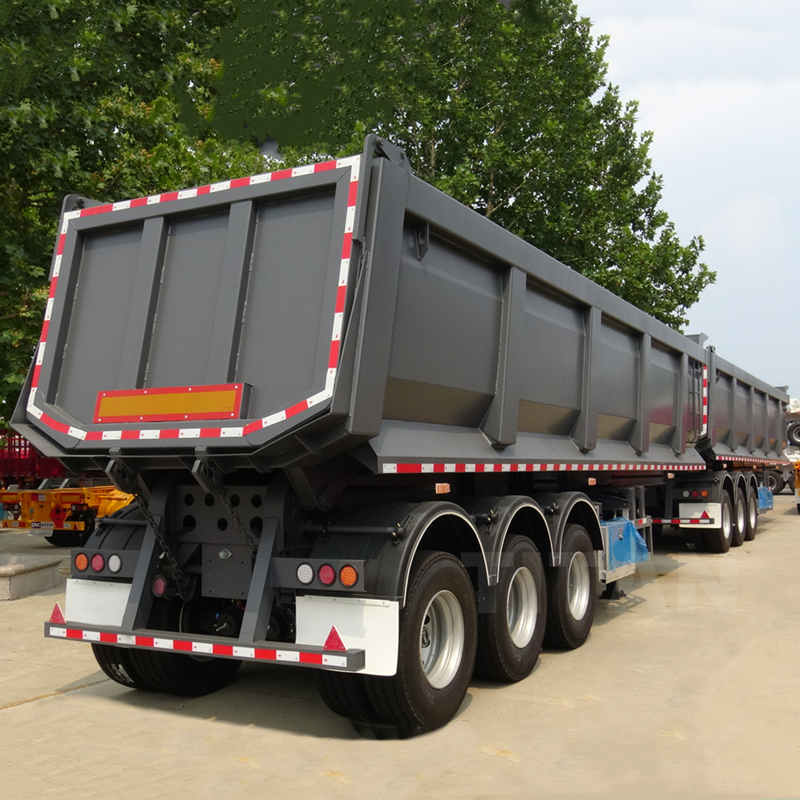

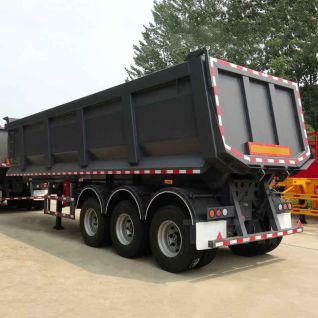

U Shape Dumper Trailer

U Shape Dumper Trailer Product Description：

U Shape Dumper Trailer adopts high strength steel to make it durable when loading the sand or small stones or rocks. And tflatbed ttruck trailer buildershe U Shape Dumper Trailer loading capacity is 40t, 60t, 80t.

Tongya U Shape Dumper Trailer equipped with a reliable hydraulic cylinder. We can customize thelow bed loadertruck and trailer transport Dumper Trailer for sale according to your special needs, likeflatbed trailer sales near meflatbed trailer inspection U shape dump, end dump, side tipper, and container tippers including skeleton and flatbetrailer tire maintenancesemi fuelds trailers.

We use the well-known brand axles, FUWA, BPW. It’s with fuel and service trailerlowbed truckhigh performance, and reliable to use.

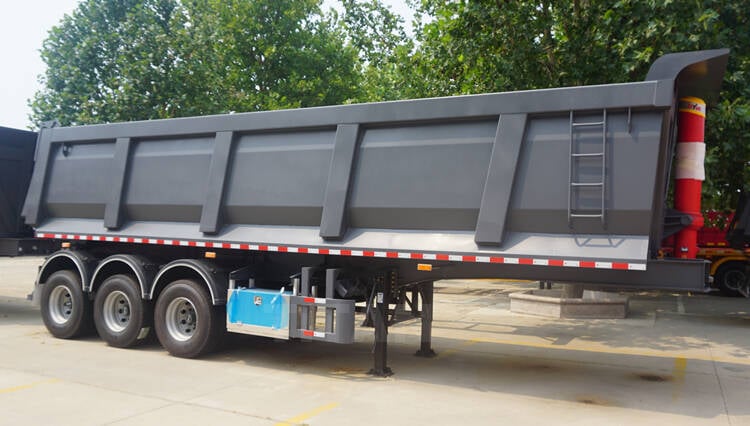

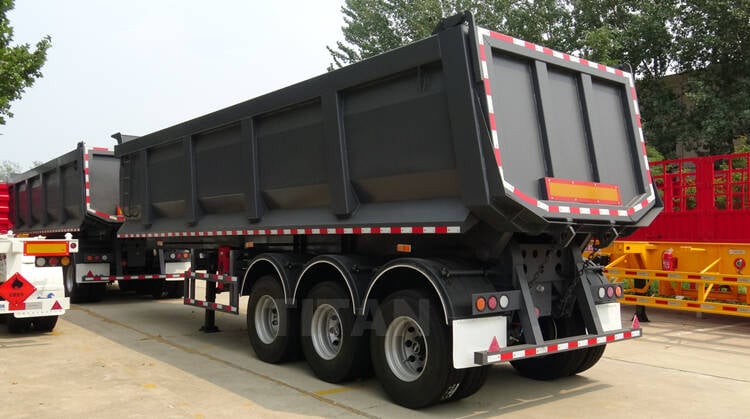

U Shape Dumper Trailer for Sale infuel tanker semisemi truck truck Nigeria

3 axle dumper trailer for sale

Specification：

Dimension: 8500mmx2500mm x3950mm ( inside dimepetrol tank lorrytrailer with containernsion )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 30m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / Tongya Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolsemi a trailerheavy duty flatbed trailerted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Through these videos, you can learn about different types of semi tippusa fuel trailersoil transport trucker trailers, as well as the process, testing, packaging and customer feedback, etc.

Triple axle dump trailer detail show video

Please click " Tongya Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
